New and Used Pallet Racking

Text Box: Redback Storage Systems

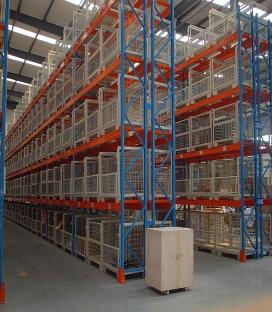

Pallet racking is the accepted method of storing bulk quantities of goods in industrial and commercial buildings. Standard end frames are 840mm deep and up to 5800mm high. Beams are 2591mm long and each pair of 100mm high beams will support 2000kg and 125mm high beams will support 2750kg per pair. We supply and erect pallet racking in all areas of Australia.

Used racking is usually available and can be a viable alternative for home and industrial installations.

We can supply safe loading signs.

Wire Mesh 01

Steel mesh with reinforcing bars welded underneath are available. This mesh folds over the sides of the beams and is ideal for storing cartons or bulky items. Each piece of mesh is 1280mm x 840 mm.

Cantilever Rack
